Snapdragon 810 vs 808: are 8 cores really better than 6?

Reported problems with the Snapdragon 810

LG's argument for using a Snapdragon 808 chipset was that the Snapdragon 810 has battery problems, which is a big admission from a company that uses the 810 in its relatively new LG G Flex 2. The Snapdragon 810 is also said to have overheating problems. This means that when the 810 reaches its maximum clock speeds, it doesn't stay there because thermal throttling (slowing down the CPU to cool it down) kicks in and slows processor down. LG has denied this particular problem, and our time with devices such as the G Flex 2 and HTC One M9 have not faced it, so we've decided to

Snapdragon 810 vs 808 graphics test

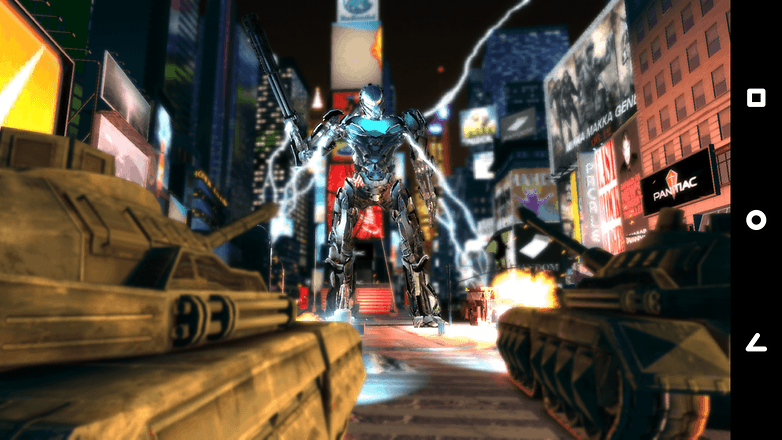

For this test, we used the graphics benchmarking tool, GFXBench. This runs a series of graphics tests that are effectively cut-scenes from videogames. The tests vary in intensity, and give a good idea of the graphical performance of a device, as well as the temperatures it runs at.

The Adreno 430 GPU on the Snapdragon 810 is the more powerful than the Snapdragon 808's Adreno 418 GPU on paper, but what happened when we ran them through GFXBench?

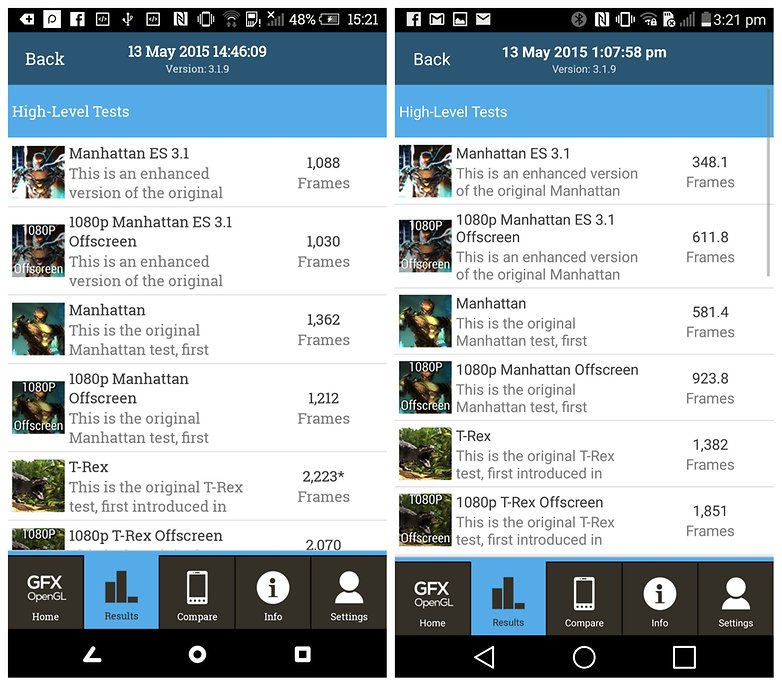

At first glance, the results seemed heavily in the Adreno 430's favor. It ran the most demanding test - Manhattan ES 3.1 - at a commendable 18.1 fps, while the Adreno 418 aboard the LG G4 struggled at a lowly 5.8 fps. It's worth taking into account that the Adreno 418 had to run at the strenuous QHD resolution of the LG G4 screen, while the Adreno 430 was dealing with a mere 1920 x 1080 pixel resolution. Despite that, he same scene at 1080p resolutions on both devices ran at 17 fps on the Snapdragon 810, and 10fps on the Snapdragon 808 - a large difference at such low frame-rates.

The results were considerably closer in less strenuous tests. In the 1080p T-Rex Offscreen test, for example, the Adreno 418 clocked 31 fps, while the Adreno 430 managed 35 fps. The results didn't fluctuate much when we carried the GFXBench benchmarks out several more times, suggesting that the Snapdragon 810 wasn't suffering from the drastic thermal throttling previously reported on the device.

Snapdragon 810 vs 808 heat test

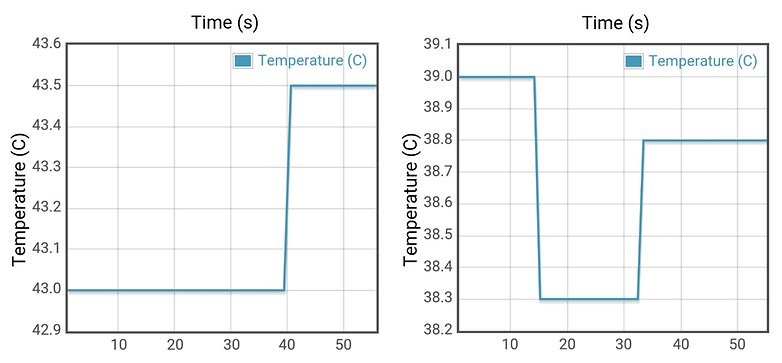

The app we used to benchmark the graphics of the Snapdragon 808 and 810 GPUs also measured the temperatures of the chipsets. Suffice to say that after running the tests five times on both devices, they both heated up a bit. Yet fears of the HTC One M9 turning into a slab of white-hot aluminum were unfounded. Certainly, five degrees celsius is not a negligible difference, but it looks like earlier problems of the Snapdragon 810 heating up to over fifty degrees celsius have been eradicated.

As our graphics test showed, the higher temperatures didn't lead to worse performance for the Snapdragon 810 device.

Snapdragon 810 vs 808 AnTuTu benchmark (x5) test

AnTuTu benchmarks should by no means be treated as gospel, but running them five times in quick succession on both of our test devices gave a good idea on whether the Snapdragon 810 suffers from thermal throttling.

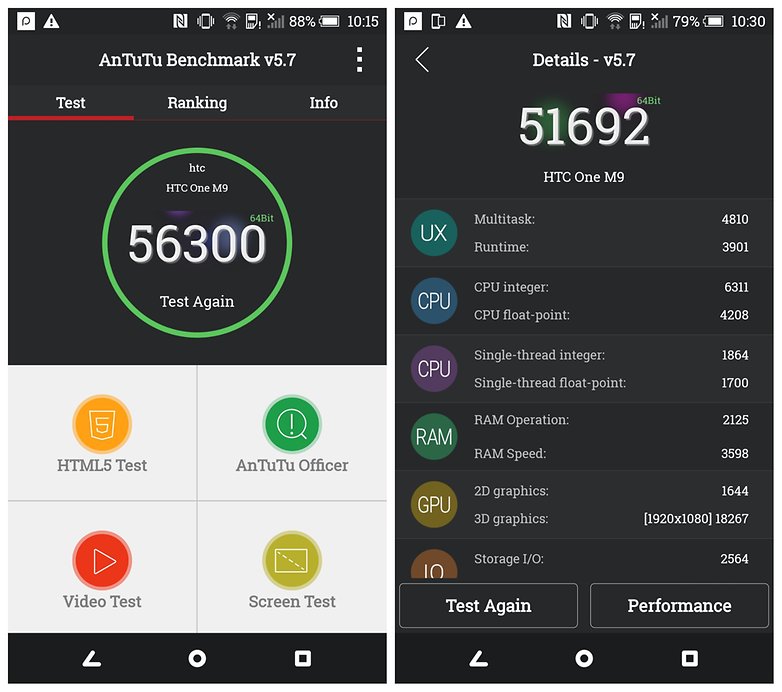

After running the AnTuTu benchmarks five times on the HTC One M9 (Snapdragon 810), the benchmark scores decreased steadily with each successive test, dropping from 56,300 in the first test, to 51,692 in the fifth test.

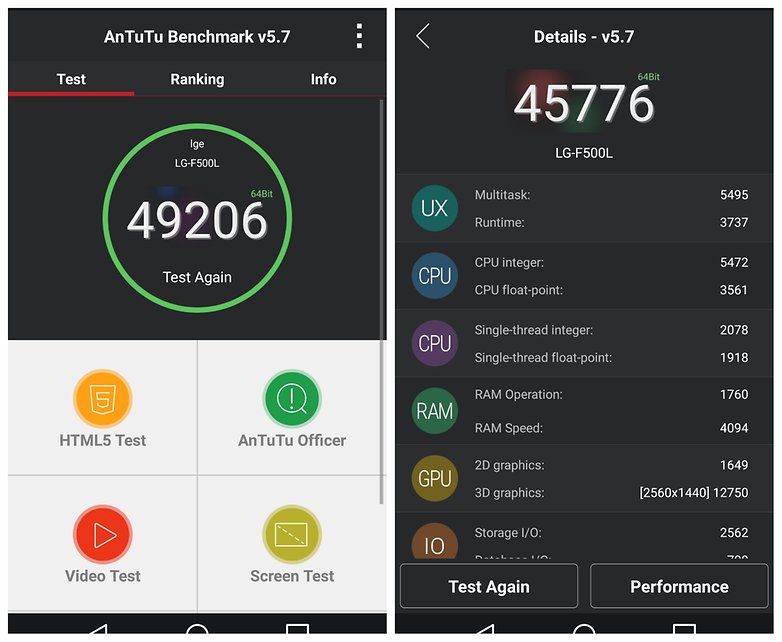

Running the same benchmark test in quick succession on the LG G4 (Snapdragon 808), it was a similar story, with the first test clocking 49,206 and the final test getting 45,776.

These tests suggest to us that thermal throttling kicks in gently on both 810 and 808 chipsets when put under the moderate strain of AnTuTu benchmarking. We did not find that the Snapdragon 808 was better at keeping up a stable performance than the 810 when put under strain.

Snapdragon 810 vs 808 multi-tasking test

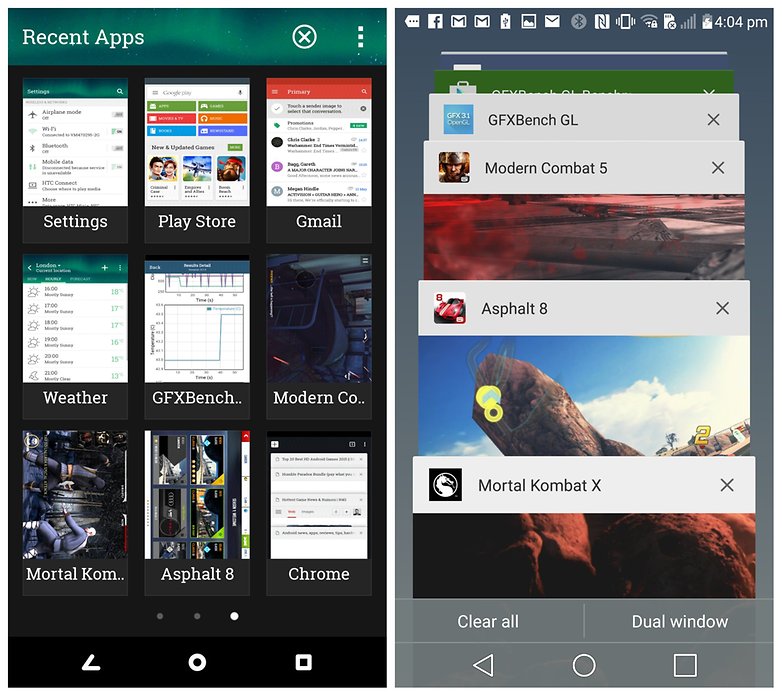

When we reviewed the HTC One M9 and and LG G4, we commended both phones for their flawless multi-tasking. Here, we pushed both devices a bit harder, running the games, Asphalt, Mortal Kombat X and Modern Combat 3 simultaneously, while also having ten tabs open in the Chrome browser.

Neither phone took too kindly to having so much strain put on their resources, but the 810 proved itself a bit more of a willing by letting two of the three CPU-intensive games run in the background and then be re-opened from where you left off. The LG G4/Snapdragon 808 would force-close two out of the three games, so re-opening from the Recent Apps menu would result in them opening afresh.

Conclusion

Our tests suggest that the overheating problems that once plagued the Snapdragon 810 have been taken care of (at least on the HTC One M9), allowing the eight-core chipset to perform to its full potential. Of course, it needs to be taken into account that HTC and LG devices use different UIs, which may put less or more strain on their respective chipsets, but the results of our test are in line with what we expected from an octa-core chipset.

So the natural order of things has seemingly been restored. Snapdragon 810 seems to have gotten over its problems and keeps its place as the supreme Qualcomm chipset, for now.

Do you agree with the verdict of our Snapdragon 810 vs 808 showdown? What are your experiences of the chipsets? Let us know!
